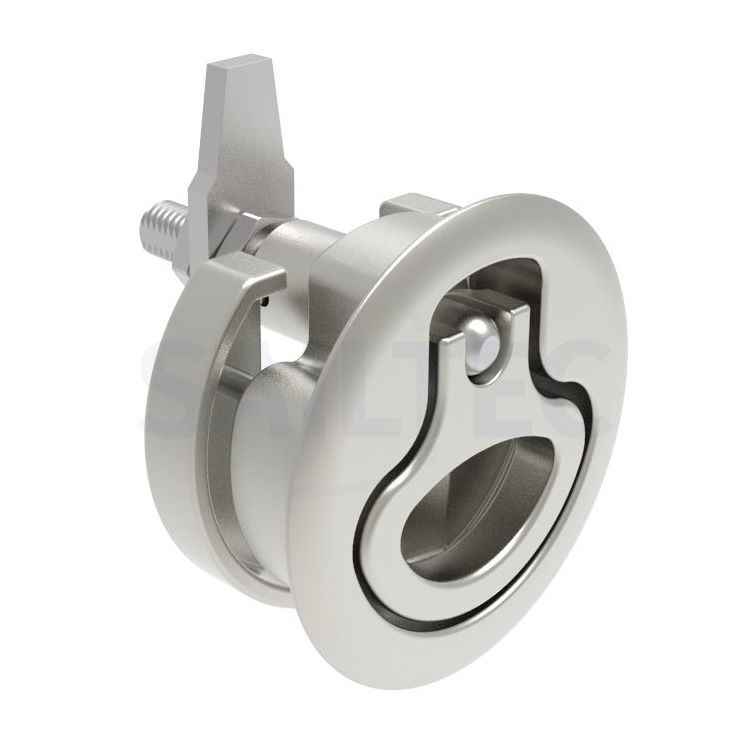

Southco M1 Compression Latch 76mm OD, Stainless Steel, Non Locking

Southco M1 Stainless Steel Compression Latch with Mounting Bracket and Pawl

Series 25:

• Outer diameter 76mm
• Mounting hole 63,5mm

The sleek flush-mount design of these latches gives designers a more stylish alternative for delivering the functionality of compressive action that provides a watertight seal and dampens vibration to reduce noise and rattle. Simply lift the handle to release compression; and turn to have the pawl clear the frame.

- Lift-and-turn action eliminates wear and tear on pawl and frame
- Durable corrosion-resistant materials withstand use in outdoor environments
- Supplied with gaskets and "O" rings for complete sealing where a watertight fit is desired
- Installs conveniently in a single round hole
- Concealed fasteners provide a clean exterior appearance

Please check for what grip range you need the latch

Grip Range 1:
Pawl forward: x - 35mm
Pawl reversed: 74 - 88mm
x = (min.Grip) = door thickness + Offset
Grip Range 2:
Pawl forward: 34 - 48mm
Pawl reversed: 60 - 75mm
Grip Range 3:
Pawl forward: 47 - 61mm
